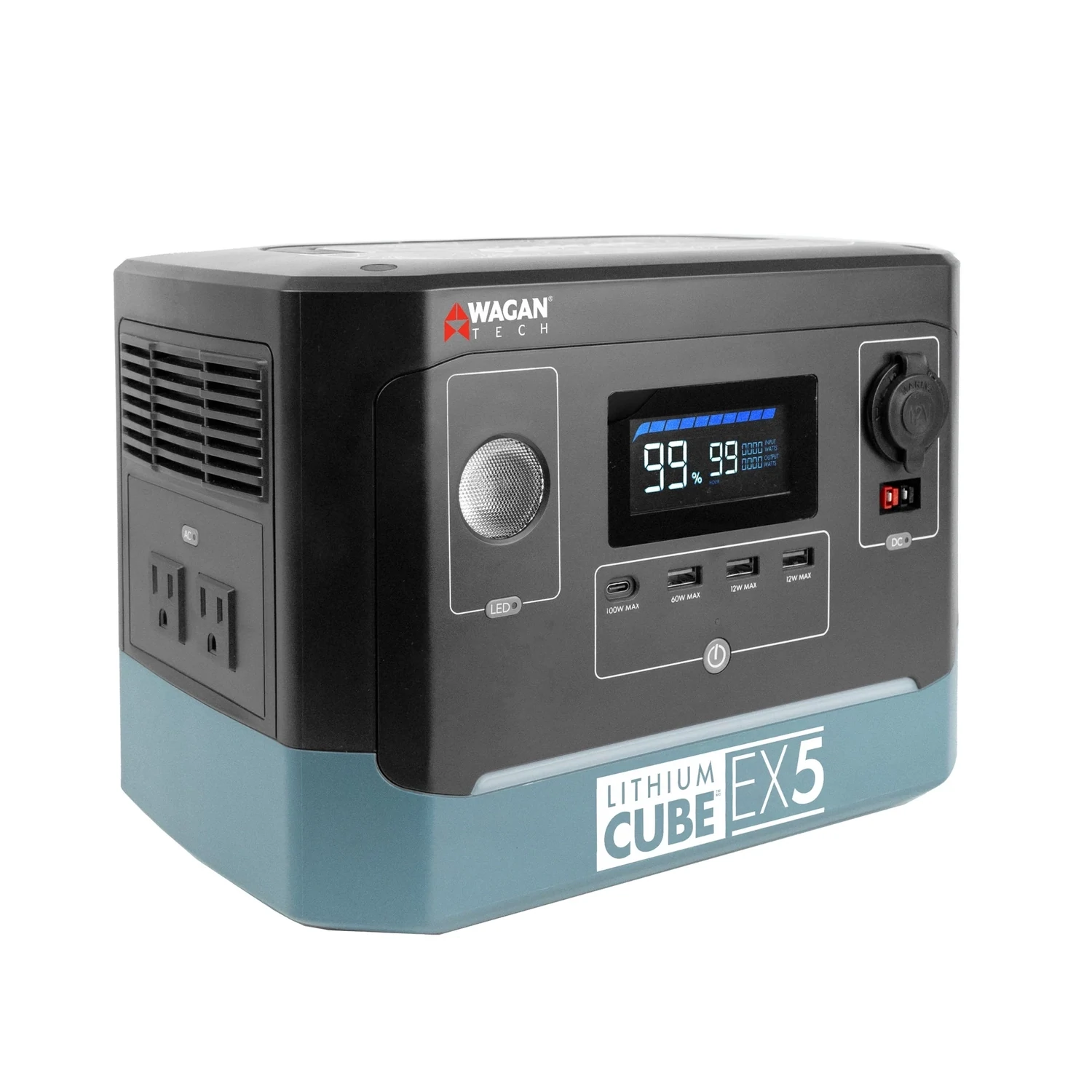

Lithium Cube EX5
The Lithium Cube EX5 features a sleek functional exterior design intended to protect the internal components and endure the rigors of off-road exploration. Each portion of the Lithium Cube EX5 was thoughtfully planned to allow an intuitive user experience.

Power Output
On the power side, the Lithium Cube EX5 features two 120V AC outlets capable of providing 500 watts of continuous Pure Sine Wave power with Fast Charge and PD delivery USB power ports supplying fast charges to all of your electronic devices. A locking 12V DC socket and industry standard Anderson power pole connectors keep your DC appliances running smoothly.

Fast Charging
Recharging the Lithium Cube EX5 is simple with the included AC and DC chargers. Performance is the name of the game when it comes to recharging; a full battery charge from 0% to 100% can be achieved in under 2 hours. Connect up to 150 watts of solar panels to the MPPT charge controller and have a standalone solar generator when power outlets are nowhere to be found.

Upgraded 12V DC Socket
Another cool feature that both the EX18 and the EX5 share - it may seem inconsequential to some, but those who need it will appreciate this design feature - the 12V DC Socket has been upgraded to a marine-type twist-lock design!

People off-roading, overlanding, or those who are prone to "bump-into things" will love the new twist-lock plug - it allows the 12V DC plug to remain in-place through bumpy terrain and rough handling. For those running fridges or other devices that don't steadily consume power, we have removed the timeout function on both the EX18 and EX5 models.

Form & Function
The design of the Lithium Cube EX5 makes one thing certain; it was designed for the user. From the handle that folds flat into the lid to the full-color display that tells you everything that is going on, even the rounded edges of the stackable square case; all point to a device that was made to be purely functional (yet retains its exceptional good looks!).

Safety
As with all of our products, your safety is a priority. We have the industry standard protections in-place to protect you and your loved ones: UL Certification on the battery, Over-voltage Protection, Over-charge Protection, Short Circuit Protection, Reverse Polarity, and Overload Protection.

The Lithium Cube EX5 will power your needs for whatever road lies ahead.

Appliance Run-Times

Quick List of Features:

• 500W Continuous / 1000W Peak Output
• Pure Sine Wave Inverter
• 150W Solar Input / MPPT Controller
• <2 hour Fast Charging
• Compact Size / Fold flat handle

Battery

• • Lithium Ternary 21700
  • 25.2V, 504Wh
  Power Inverter (120V AC) Output
  • Waveform: Pure Sine Wave (PSW)
  • Output: 120V AC
  • Continuous Output: 500W
  • Peak Surge: 1000W
  • Frequency: 60Hz
  • Cooling Fan: Thermally Controlled
  • AC Outlets: 2
  • Over-heat protected: Yes
  • Short-circuit protected: Yes
  • Over-voltage protected: Yes
  • Under-voltage protected: Yes
  Solar Charge Controller
  • Type: MPPT
  • Input: Anderson power-pole
  • Input Voltage: 10-25V DC
  • Input Current: 10A
  • Max Solar Input: 150W
  AC Charger
  • Input Voltage: 108-132V
  • Input Frequency: 60Hz
  • AC Charger Output: 300W
  DC Charger (Input)
  • Fuse: 30A
  • Length: 5 Feet
  • Acceptable Input: AC (via voltage converter), DC, Solar Panels, Wind Turbine, Hydro-electric
  • Anderson Connectors: Built-in
  • Input Range: 11-15V
  • Input Max Amperage: 8.5A
  DC Socket (Output)
  • Regulated 12.0V Socket
  • 12VDC Socket Count: 1
  • Socket Rated Output: 10A
  USB Power Ports
  • USB Power Port Count: 4
  • USB-C: 1 port
    - 100W PD (5V, 9V, 12V, 15V, 20V 5A)
  • USB-A (Fast-Charging): 1 port
    - 60W
  • USB-A (standard USB): 2 ports
    - 12W (2.4A)
  Build Specs
  • Pass Through Charging: Yes
  • Folding Handle
  • AC Charger: Included
  • DC Charger: Included
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 122°F (-20°C - 50°C)
  • Operating Humidity: 10% - 90%
  • Storage Humidity: 5% - 95%
  • LED Worklight: 60 Lumens
  • LED Worklight Modes: High, SOS
  • Weight: 15.5 lbs.
  • Dimensions (LxWxH): 8.4 x 11.9 x 7.8 in
  • Display: Full Color, Full operational details
  • UPC: 08436708835-2
  • MFG: EL8835
  • Warranty (USA): 2 Years
  Certifications & Protections
  • UL Certification: Battery
  • Over-voltage Protection
  • Over-charge Protection
  • Short circuit Protection
  • Reverse Polarity
  • Overload Protection
